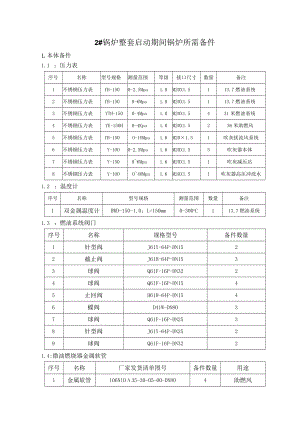

2#锅炉整套期间所需备件09.28.docx

2#锅炉整套启动期间锅炉所需备件1.本体备件1.1 ：压力表序号名称型号规格测量范围等级接口尺寸数量备注1不锈钢压力表YB-1500-2.5Mpa1.0M20X1.5113.7燃油系统2不锈钢压力表YB-1500-6Mpa1.0M20X1.5113.7燃油系统3不锈钢压力表YTH-1500-4Mpa1.0M20X1.5431米燃油系统4不锈钢压力表YE-150H0-4Kpa1.0M20X1.5236米助燃风5不锈钢压力表YB-150O-IOMpa1.6M20×1.51吹灰扰流风系统6不锈钢压力表Y-IOO0-2.5Mpa1.6M20X1.55吹灰器本体7不锈钢压力表Y-15006Mpa1.6M20X1.51吹灰减压站8不锈钢压力表Y-IOO040Mpa1.6M20X1.51吹灰器高压冲洗水1.2 ：温度计序号名称型号规格测量范围数量备注1双金属温度计BWD-150-1.0；L=150mm0-300oC113.7燃油系统1.3 ：燃油系统阀门序号名称规格型号备件数量1针型阀J61Y-64P-DN1522截止阀J61H-64P-DN1533球阀Q61F-16P-DN3224球阀Q61F-16P-DN1545止回阀H61H-64P-DN1546蝶阀D41W-DN8037球阀Q61F-16P-DN2538针型阀J61Y-64P-DN2529球阀Q61F-16P-DN3221.4:微油燃烧器金属软管序号名称厂家发货清单图号备件数量用途1金属软管106NlD35-30-05-00-DN804助燃风2金属软管70N1DA35-30-11-00-DN154输油管道3金属软管70NX1D35-30-l2-00-DN154压缩空气4金属软管DN25-15004火检冷却风1.5：煤粉燃烧器金属软管序号名称厂家发货清单图号-型号备件数量用途1金属软管137N1DA21-40-04-01-07-00-DN254气泡雾化压缩空气2金属软管137N1DA21-40-04-01-08-00-DN254气泡雾化输油管道1.6：省煤器除灰压缩空气管道序号名称型号规格备件数量用途1金属软管DN50；PNl.6；L=15001省煤器压缩空气吹灰管道1.7：燃油系统气动球阀序号名称型号规格（厂家发货清单）备件数量用途1气动球阀07AW44(力口长管)DA63EFG551002MSSX1F200-1Gl/4”8SL-02ZJ-IZH-I(DN25)2微油油枪进油气动球阀2气动球阀07AW44(力口长管)DA63V46K2T1,D23050M014A0-2HG1/4”8SL-02ZJ-IZH-I(DN25)2微油压缩空气进口、吹扫气动球阀3气动球阀10AW44SR7503SN4101-IP,3009MA220W2SX1F200-1G1/4”8SL-02ZJ-2ZH-23(DN25)2油枪吹扫气动球阀4气动球阀10AW44DA63EL1220ITS-102GI/4”8SL-02ZJ-2ZH-2(DN25)2油枪进油气动球阀5气动球阀07AW44(加长管)DA63V46K241DA23050AM014A02HG1/4”8SL-02ZJ-IZH-I(DN15)2气泡雾化1.8：水压试验堵阀序号名称厂家发货清单图号备件数量用途1密封圈D0630.15074低再进口堵阀2密封圈D1550.12122高再出口堵阀3密封圈DE300.12112高过出口堵阀1.9:水冷壁备用管序号名称型号材质备件数量用途1优化内螺纹管道31.8X5.5SA-213T1220米中部、拱区、下部水冷壁2优化内螺纹管道38.1X8.3SA-213T1220米拱区水冷壁L10:阀门垫子序号名称型号规格备件数量用途1金属石墨垫DN125PN6.410燃油系统、杂项管道2金属石墨垫DN80PN2.520杂项管道3金属石墨垫DN50PN4.020吹灰器管道4金属石墨垫DN25PN6.420燃油系统5金属石墨垫DN350PN6.42燃油系统滤网6金属石墨垫DN300PNl.64启动疏水7金属石墨垫DN250PNl.62启动疏水8金属石墨垫DN200PNl.62启动疏水9金属石墨垫DN150PNL62启动疏水2.辅机备件名称规格型号材质单位数量引风机润滑油站滤网滤芯LH0330D010BN3HC件2一次风机、送风机双筒过滤器滤芯Zngloioioioi件4送风机双筒过滤器换向阀Zngloioioioi件1磨煤机电机润滑油站过滤器滤网Zngloioioioi件6磨煤机高低压油站过滤器滤网ZNGLO1010201件6橡胶0型密封圈16、10中25、30个各15不锈钢球阀1304件6球阀QIIFT6型DN50件2
